Produktblad
Processor
Kompatibla processorer
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processorsockel
AM5-sockel
Stödd processor uttag
AM5-sockel
Processortillverkare
AMD
Minne
Antal minnesplatser
4
Minnesplatser, typ
DIMM
Obuffrat minne
Minnestyper som stöds
DDR5-SDRAM
Minneskanaler
Dubbla kanaler
Maximalt internminne
256 GB
ECC-kompatibilitet
ECC & icke-ECC
Lagringskontroll
RAID-stöd
Antal lagringsenheter som stöds
10
Typer av lagringsenheter som stöds
HDD & SSD
Lagringsenhetsgränssnitt som stöds
M.2, SATA III, SlimSAS
RAID-nivåer
0, 1, 5, 10
Grafiken
Ombord grafikkort
Stöd för parallellprocessteknik
Stöds inte
Internal I/O
USB 3.2 Gen 2x2-anslutningar
1
USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar
2
Kontakter på framsidan
12V-kontakt
RGB LED stiftlist
USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar
1
Antal SATA II kontakter
0
Antal SATA III kontakter
4
EPS strömkontakt (8-polig)
Ljudanslutning på framsidan
Antalet Seriella ATA anslutningar
0
USB 2.0 anslutning
2
CPU-fläktsanslutning
ATX strömkontakt (24-pin)
Antal anslutningar för fläktar
2

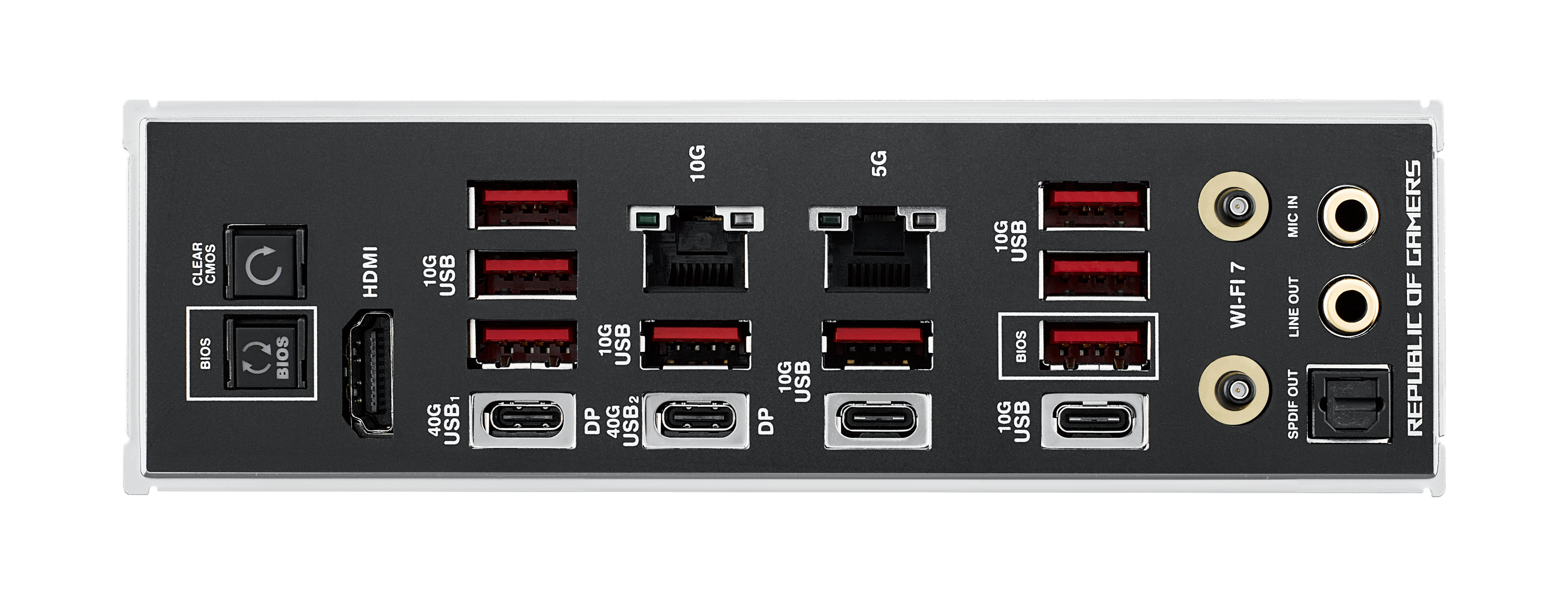

Anslutningsmöjligheter
Antal PS/2-portar
1
Antal USB 2.0 anslutningar
0
Antal LAN (RJ-45) anslutningar
2
S/PDIF-utgång
Kvalitet på VGA (D-Sub) porten
0
WiFi-AP antennuttag
1
Antal DVI-D anslutningar
0
Antal HDMI-portar
1
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar
0
Antal USB 3.2 Gen 1 (3.1 Gen 1)typ C-portar
0
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar
8
Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar
2
USB 4 Gen 3x2, antal portar
2
Nätverk
Nätverksansluten (Ethernet)
Wi-Fi
Typ av ethernet-gränssnitt
5 Gigabit Ethernet, 10 Gigabit Ethernet
Bluetooth
Bluetooth-version
5.4
Wi-Fi-standarder
Wi-Fi 7 (802.11be)
Wi-Fi-standard
Wi-Fi 7 (802.11be)
Egenskaper
Ljudutgångskanaler
7.1 kanaler
Moderkort formfaktor
Utökad ATX
Moderkortets chipset
AMD X870E
Moderkort, chipsetfamilj
AMD
Komponent för
PC
Ljudchipp
Realtek ALC4082
Windows-operativsystem som stöds
Windows 11
Produktens färg
Svart
Expansionsplatser
1:a M.2 största nyckelstorlek
22110
1:a M.2 högsta PCI Express-generation
5.0
2:a M.2 största nyckelstorlek
2280
2:a M.2 högsta PCI Express-generation
5.0
3:e M.2 största nyckelstorlek
22110
3:e M.2 högsta PCI Express-generation
5.0
4:e M.2 största nyckelstorlek
22110
4:e M.2 högsta PCI Express-generation
4.0
5:e M.2 största nyckelstorlek
22110
5:e M.2 högsta PCI Express-generation
4.0
PCI Express x16 (Gen 5.x) platser
2
PCI Express x16 (Gen 4.x) platser
2
Antal M.2 (M)-platser
5
BIOS
BIOS minnesstorlek
512 mbit
BIOS-typ
UEFI AMI
Förpackning
Förpackningens bredd
380 mm
Låddjup
320 mm
Förpackningens höjd
125 mm
Vikt inkl. förpackning
5,66 kg
Vikt & dimension
Bredd
305 mm
Djup
277 mm
Förpackningens innehåll
Kabel inkluderad
SATA
Drivrutiner medföljer
Antenn ingår
Övrigt
Ljudutgång
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Speciella egenskaper
Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. ** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode. ** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.
Andra funktioner
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Grafikutgång
1 x HDMITM port**
2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors' or graphic cards' resolution.
Antal mSATA-portar
0
|
