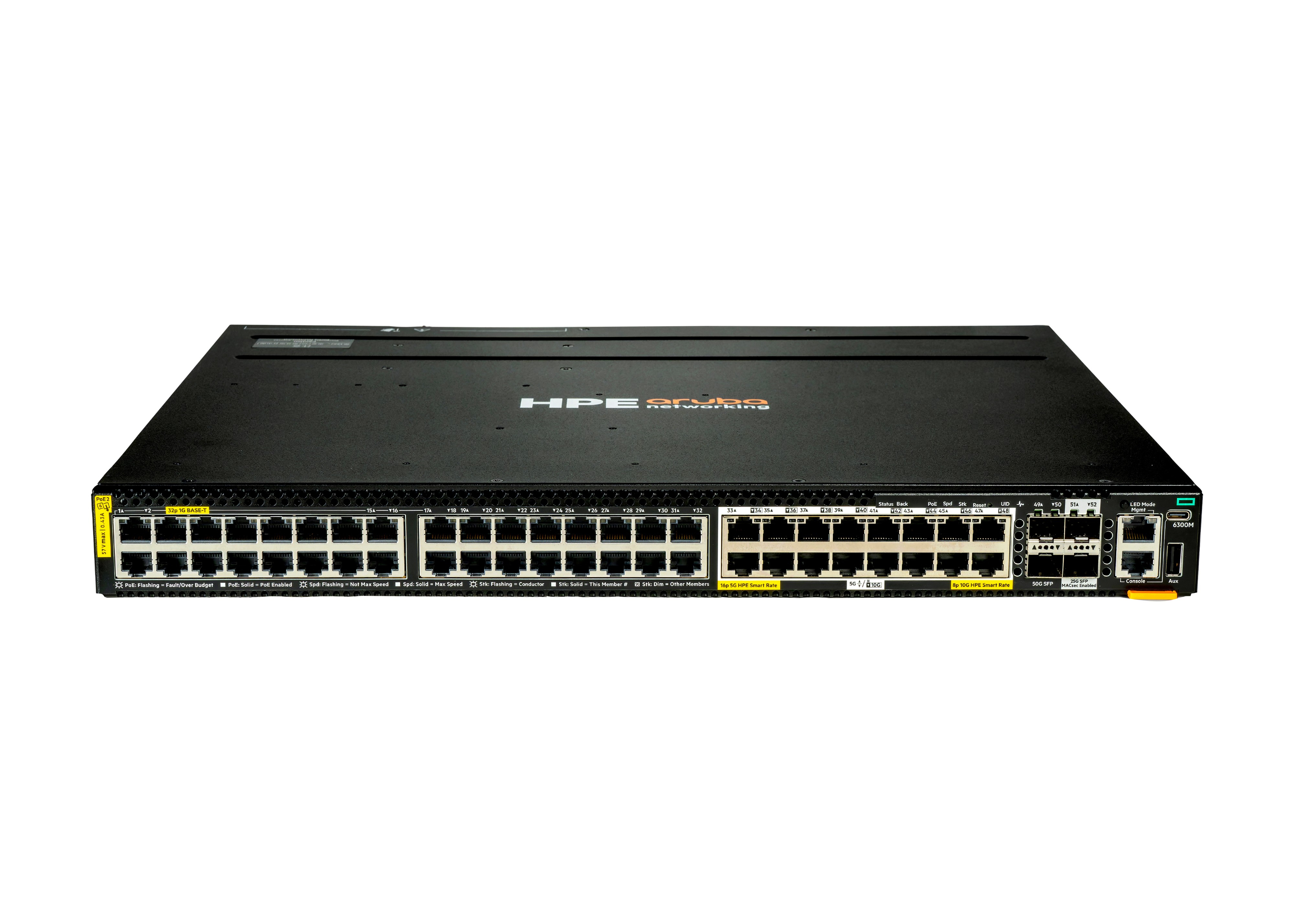

Produktblad
Management features
Switch-lager
L3
Stöd för garanterad tjänstekvalitet (QoS)
Webbaserad adminstraion
Switch typ
hanterad
Molnhanterat
Anslutningar
Fiberoptiska kontakten
SFP28, SFP56
Antal grundläggande RJ-45 Ethernet-portar
48
Typ av grundläggande RJ-45 Ethernet-portar
10G Ethernet (100/1000/10000)
Antal installerade SFP-moduler
0
Antal installerade SFP+-moduler
0
Antal SFP28-ingångar
2
Antal USB Typ A-portar
1
Antal hanteringsportar
1 styck
QSFP56-portar, antal
2
Nätverk
Portspegling
Koppar Ethernet-kablar teknik
100BASE-T
10G stöd
Data transmission
Genomströmning
390 Mpps
Switch kapacitet
524 Gbit/s
Design
Rackmontering
Formfaktor
1U
Staplingsbar
Produktens färg
Svart, Silver
Prestanda
Flashminne
32000 MB
Internminne
8000 MB
Processorfrekvens
1800 MHz
Minnestyp
DDR4-SDRAM
Fysisk stackning (enheter)
10
Inbyggd processor
Strömtillförsel
AC-inspänning
100 - 240 V
Växelström Frekvens
50/60 hz
Notering för strömförsörjning
2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A, JL670A and JL758A.
Strömkälla
AC/DC
Strömförsörjning ingår
Meddelane om effektförbrukning
With JL670A PSU: Idle: 103W 100% Traffic Rate: 134W With JL758A PSU: Idle: 111W 100% Traffic Rate: 135W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE)-budget
2880 W
Strömförsörjning via Ethernet (PoE) stöd
Övrigt
Vikt (imperial)
6,02 kg (13.3 lbs)
Fläkt
Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‐swappable. Each fan tray contains two fans.
Prestandahantering
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Latens
Less than 5 μs 1 Gbps: 3.6 μs
Minne och processor
CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
Externa anslutningar
32x 10/100/1000M and 16x HPE Smart Rate 1/2.5/5G BaseT ports (configuration can be changed to 8x HPE Smart Rate 10G BaseT ports) with Class 8 PoE supporting up to 90W per port 2x 10G/25G/50G [4] SFP ports 2x 10G/25G SFP ports (MACsec) Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W) 1x USB-C console port 1x USB Type-A host port 1x OOBM port 1x RJ-45 console Port 1x Bluetooth dongle to be used with CX Mobile App [4] 450G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which require QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.
Miljökrav
Temperatur vid drift
0 - 45 ° C
Vikt & dimension
Bredd
44 mm
Djup
442 mm
Vikt
6,02 kg
|
